エコープロF1は、ワイヤ
レス充電方式を採用した
先進的な超音波画像診断
装置です。このデバイス
は、使いやすさと携帯性
を重視して設計されてお
り、医療現場での柔軟な
使用が可能です。
エコープロF1を安全に使用し、データをWi-Fi環境下で安全に送信するためには、Wi-Fiネットワーク自体のセキュリティを確保することが重要です。
エコープロF1は、iOSおよびAndroidシステムと互換性のある無料アプリケーションを提供します。このアプリケーションを利用することで、専用端末を持たずにスマートフォンやタブレットを使用してエコー検査を行うことができます。
エコープロF1には、高性能な超音波プローブが搭載されています。このプローブは、高い解像度と深部への優れた透過性を持ち、正確な画像を生成します。
高性能
簡単操作
鮮明な画像
製品仕様
Controlled medical device / Specific maintenance controlled medical device Sales name: EchoPro - F1
Medical device certification number: 303AKBJ200795000
・Probe frequency: 3.5MHz/5.0MHz
・elements: 192Element
・Continuous use time: Approximately 2 hours
・Battery charging: USB charging or wireless charging

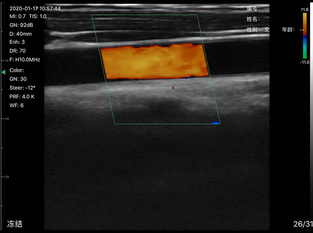

・Display mode: B mode/BM mode/Color Doppler mode/
Powered Doppler mode/Pulsed Doppler mode
・Scan depth: 90/160/220/305mm adjustable
・Size: 150mm x 50mm x 20mm Approx. 200g
・Various functions such as image adjustment within the dedicated app
Support Plan
Breakdown/Accident
Deterioration/friction
Probe
Battery Change
Once every two years
Damage caused by careless dropping, etc.
1 year basic warranty
We have prepared a special support plan for Pocket Echo exclusively for the time of purchase.
3 year warranty plan
¥72,000
5 year warranty plan
¥180,000
Recommendation
First: 50% for practical useSince the second start, all costs will be paid by the customer.
Warranty Policy
・ The warranty applies only to products purchased from our company or retailers.
- If our inspection determines that a product-related failure has occurred within the normal range of use, we will provide a replacement product.
However, we will only respond after the defective product arrives, and we will not send a replacement product in advance.
・ Damage caused by dropping is the same for all plans. During our inspection, we will not accept unintentional or minor damage.
Due to some load
If it is determined that a problem has occurred, the customer will be covered under the plan to which they are subscribed.
We will respond free of charge.
This warranty policy may be changed without notice. The product warranty will be subject to the latest warranty policy.
Let me do it.
Disclaimer
Even if the product is within the warranty period, if we determine that any of the following applies, you will not be able to receive a replacement.
- Damage or breakdown caused by fire, earthquake, flood, lightning, other man-made disasters, natural disasters, pollution, etc.
- When used intentionally or accidentally by the customer, or when the product is used under conditions not intended by our company.
If you are unable to present the warranty card when requested by our company
- Damage caused by transportation, movement, dropping or improper handling after purchase
- Damage caused by disassembly or modification of the device by anyone other than our company
